Default SolveSpace - a parametric 2D/3D CAD program

From the SolveSpace homepage...
Quote:
SOLVESPACE is a parametric 3d CAD program. Applications include:
  • modeling 3d parts draw with extrudes, revolves, and Boolean (union / difference) operations
  • modeling 2d parts draw the part as a single section, and export DXF, PDF, SVG; use 3d assembly to verify fit
  • 3d-printed parts export the STL or other triangle mesh expected by most 3d printers
  • preparing CAM data export 2d vector art for a waterjet machine or laser cutter; or generate STEP or STL, for import into third-party CAM software for machining
  • mechanism design use the constraint solver to simulate planar or spatial linkages, with pin, ball, or slide joints
  • plane and solid geometry replace hand-solved trigonometry and spreadsheets with a live dimensioned drawing
SolveSpace was previously a commercial program until the developer, Jonathan Westhues, released the code in August 2013. Interested persons may want to read this write-up. There are several videos on YouTube as well.

Compared to other bloated CAD programs, SolveSpace weighs in at a measly 1.4 MB. SolveSpace is portable too. Once you download the single executable, you can drop it anywhere or carry it around on a flash drive.

SolveSpace works on Windows XP to 10 but Linux users can also run the program under WINE. RC versions are also available for Windows, Linux and Mac.
Joe A.TT is offline   Reply With Quote
Old 11. Jun 2016, 12:55 AM   #2 (permalink)
Senior Member

Join Date: Oct 2012
Posts: 1,028
Default

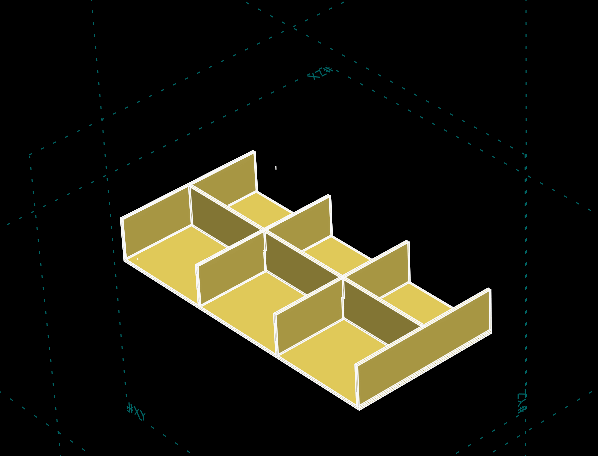

Hi guys, I recently tried SolveSpace on a basic project and I thought I'd post a little demo here.



This is my first try with a CAD program so I am far from expert, but for a 6MB program, I think I am impressed! This is a keeper.
